Netis NIS3008pro 8port gigabit

Description

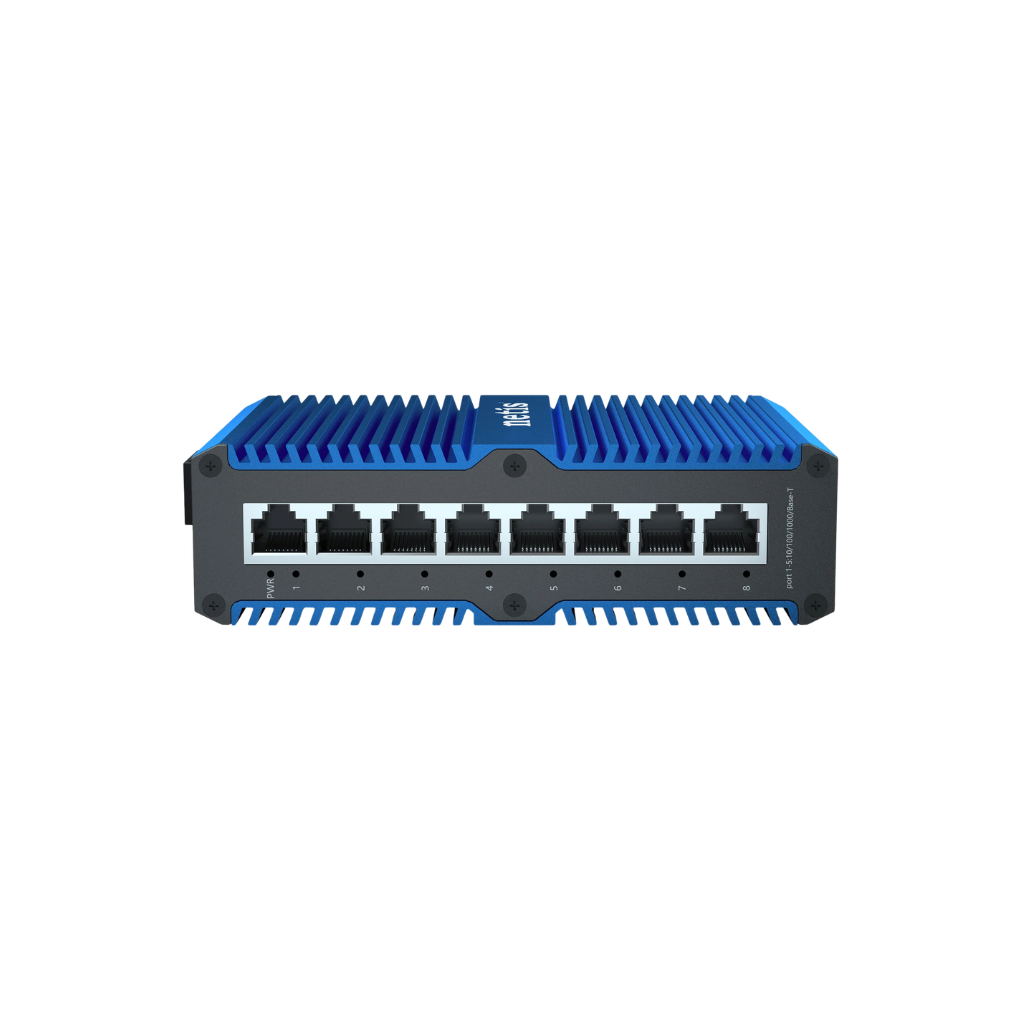

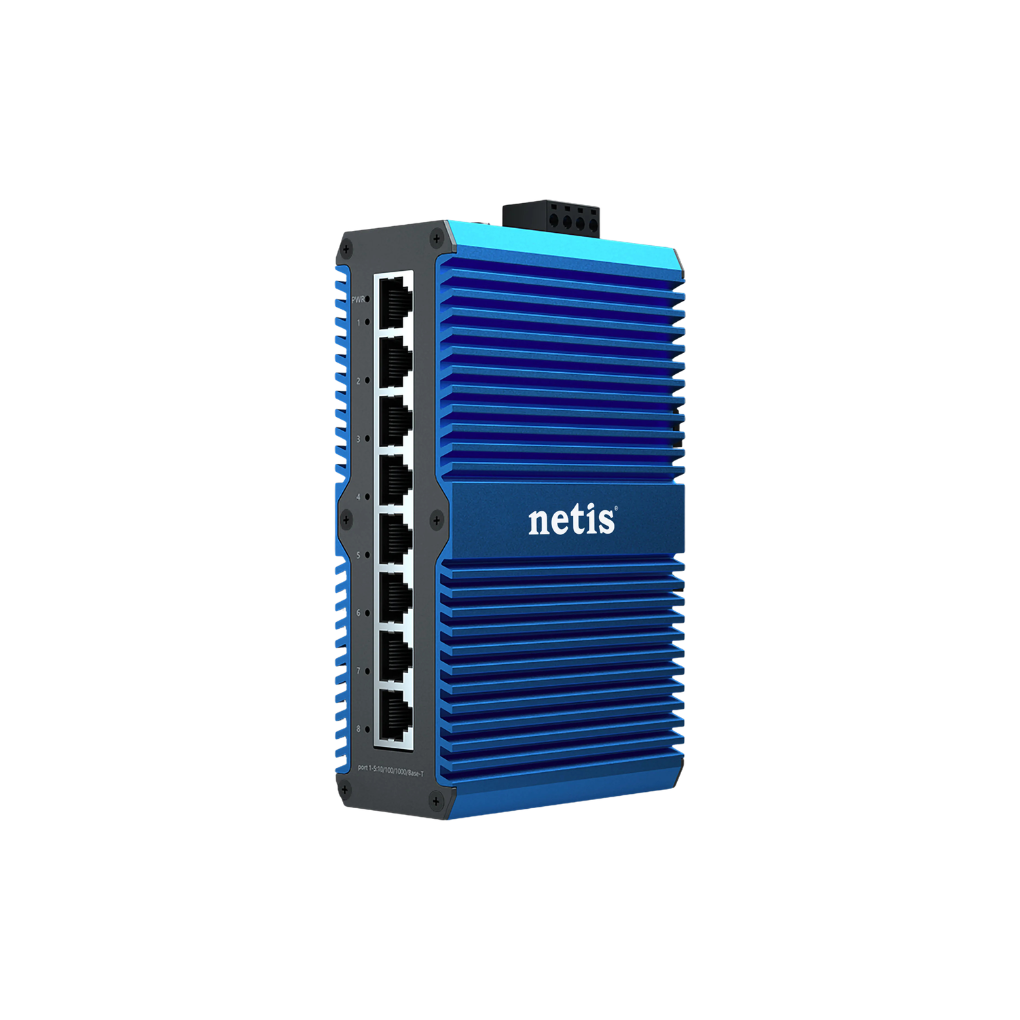

Netis NIS3008pro 8port gigabit

Empower your critical network infrastructure in harsh environments with the Netis NIS3008pro 8port gigabit industrial switch. Engineered for network engineers, automation specialists, and security integrators, this rugged unmanaged switch delivers high-speed Gigabit transmission across eight Auto-MDI/MDIX ports. Featuring an IP40-rated metal housing, wide temperature resilience ($-40^\circ\text{C}$ to $+85^\circ\text{C}$), dynamic power redundancy, and a standard DIN-rail mount, it provides continuous, low-latency connectivity for industrial surveillance, intelligent transportation, and factory automation.

Design & Industrial Grade Build

The Netis NIS3008pro 8port gigabit switch is enclosed in a rugged, fanless IP40 steel housing measuring $140\text{ mm} \times 90\text{ mm} \times 40\text{ mm}$. Built specifically for space-constrained control panels, its industrial chassis efficiently dissipates internal heat without requiring moving parts. The integrated DIN-rail clip provides secure, shock-resistant mounting inside automation cabinets and outdoors.

Full Gigabit Switching Performance

Delivering a powerful $16\text{ Gbps}$ switching capacity and a $11.904\text{ Mpps}$ packet forwarding rate, the NIS3008pro prevents network bottlenecks. All 8 RJ45 ports support wire-speed Gigabit data transfer alongside store-and-forward architecture. This ensures zero packet loss during continuous, high-definition video surveillance streaming, industrial sensor data routing, and real-time automation telemetry.

Redundant Power & Electrical ProtectionEquipped with a 5-pin terminal block, the NIS3008pro supports wide-voltage $12\text{V}\text{–}36\text{V}$ DC power inputs with integrated reverse-polarity and overload protection. Its dual power redundancy guarantees uninterrupted operation even if a primary power source fails. Built-in EMC level 4 immunity guards connected equipment against high-voltage static discharges and electromagnetic interference.

Harsh Environment Operating ResilienceEngineered to withstand physical shock, vibration, and extreme temperature swings, the NIS3008pro operates flawlessly from $-40^\circ\text{C}$ to $+85^\circ\text{C}$. Every unit undergoes a 100% burn-in test at peak temperatures to ensure maximum longevity. It is the ideal plug-and-play solution for tolling systems, intelligent traffic hubs, and outdoor IP surveillance networks.
